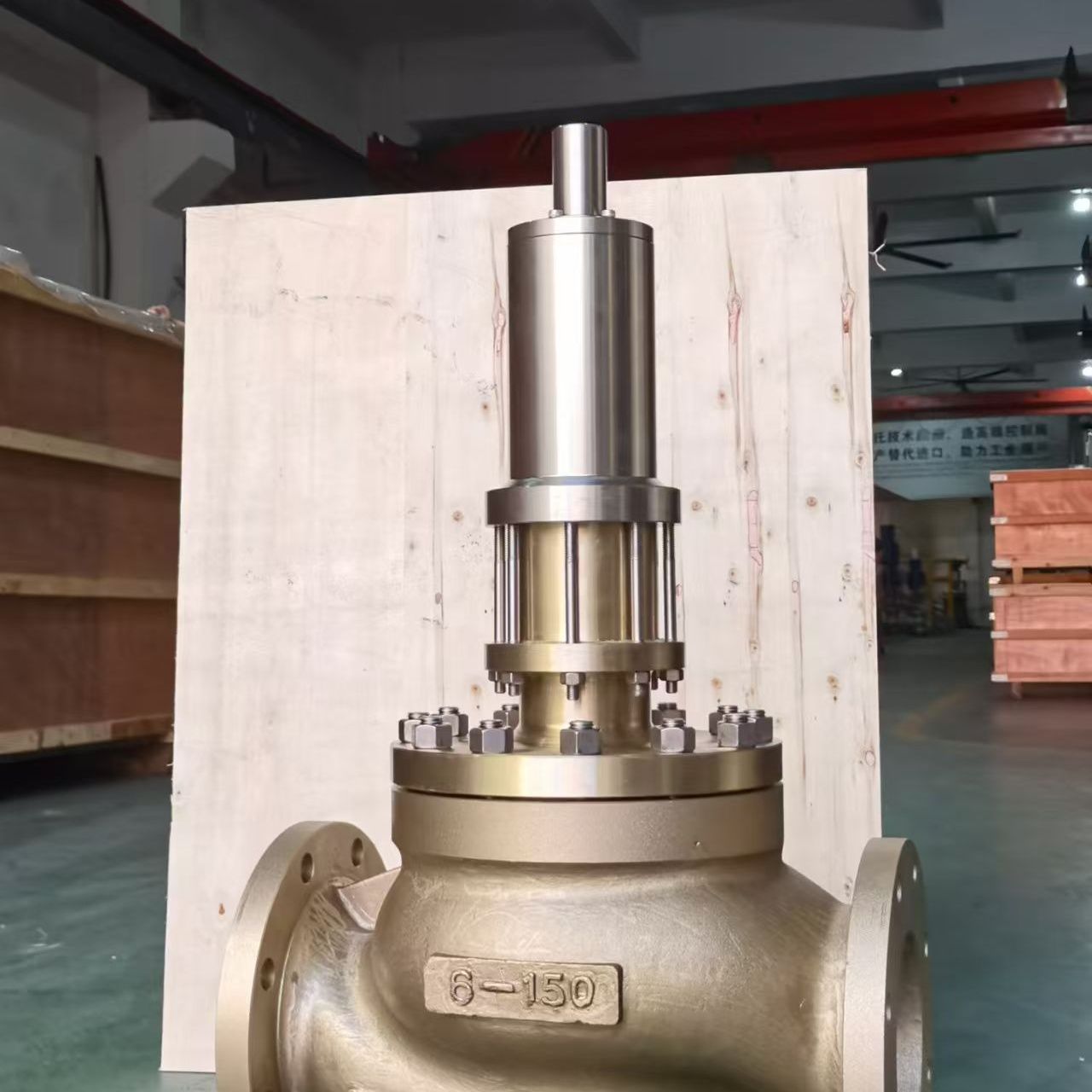

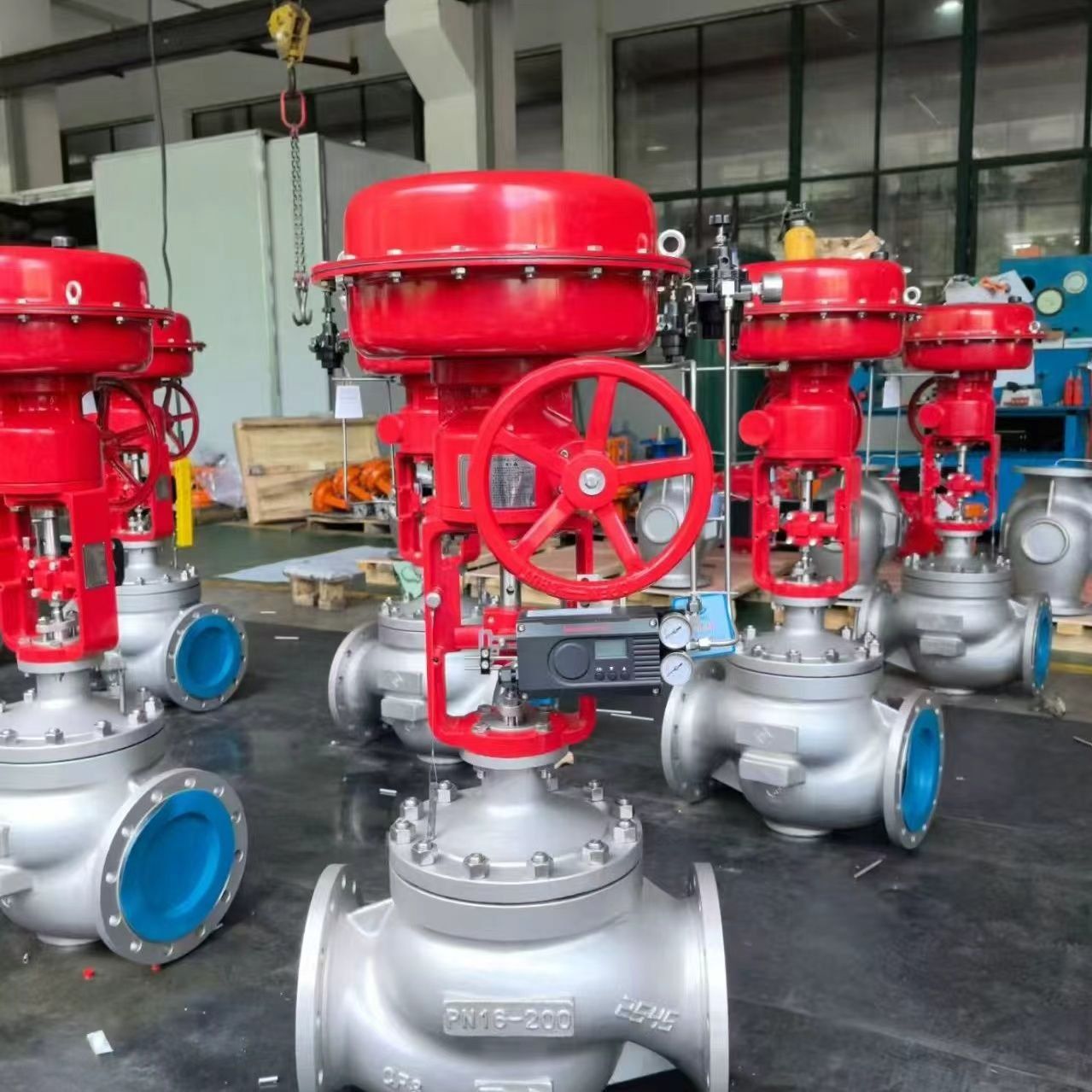

Sampling and Dosing Control Valve
PTFE / PFA Lined · DN25–DN150 · PN16 · Corrosive Service
Reguvale's sampling and dosing control valve is purpose-built for low-flow, high-accuracy chemical injection into process lines. The body is fully PTFE / PFA lined and the trim uses anti-cavitation geometry to handle aggressive reagents (NaOH, H2SO4, HCl, hypochlorite, polymer) without seat wear.
Each valve is sized for the precise dosing flow (typically 0.01 – 10 m3/h) and ships with a matched pneumatic or electric actuator and 4-20 mA positioner. An optional clean-in-place (CIP) connection on the body allows periodic flushing without disassembly. PVDF, Hastelloy and alloy-20 options are available for the most demanding reagent service.
Standard sizes DN25–DN150 in PN16 cover most water-treatment, mining and chemical-plant dosing duty.
Key Features
PTFE / PFA Lined Body
Fully lined wetted path handles aggressive reagents (NaOH, H2SO4, HCl, hypochlorite) without metal exposure.
Anti-Cavitation Trim
Multi-stage trim prevents cavitation at high pressure drop typical of dosing pump discharge service.
Low-Flow Accuracy
Trim geometry optimised for 0.01 - 10 m3/h with a high turn-down ratio for precise reagent metering.
CIP Option
Optional clean-in-place connections flush the body cavity without disassembly, ideal for food, beverage and pharma duty.
Match to Dosing Pump
Sized to match common dosing pump capacities (e.g. 10 l/h, 50 l/h, 500 l/h) - plug in and run.
Smart Positioner Ready
4-20 mA / HART positioner modules deliver the precise setpoint needed for proportional dosing control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Body Material | WCB / SS316 with PTFE / PFA lining |
| Plug / Trim | PTFE / PFA / SS316 / Hastelloy / Alloy 20 |
| Seat Material | PTFE / PFA (soft) |
| Body Type | Single-seat, anti-cavitation multi-stage |
| Size Range | DN25 – DN150 (1" – 6") |
| Pressure Rating | PN16 (PN25 / PN40 on request) |
| End Connection | Flanged (ISO 7005-2 / ASME B16.5) |
| Flow Characteristic | Equal-Percentage / Linear |
| Actuator Type | Pneumatic diaphragm / Electric motor |
| Control Signal | 3-15 psi / 4-20 mA / On-Off |
| Positioner | YT-1000 / YT-1050 / Smart digital |
| Lining Thickness | 3 - 5 mm PTFE / PFA |
| Temperature | -20→+180°C (PTFE) / +200°C (PFA) |
| CIP Option | Available on request |
| Standards | IEC 60534 / GB/T 4213 / ANSI/ISA-75 |
| Certification | ISO 9001:2015, SGS MTC available |
Frequently Asked Questions
Why PTFE-lined for sampling and dosing?
PTFE / PFA lining protects the metal body from aggressive reagents (acids, alkalis, hypochlorite, polymer) and prevents metal-ion contamination in food, beverage and pharma duty.
Can it handle cavitation at dosing pump pressure?
Yes. The multi-stage anti-cavitation trim breaks high pressure drop into multiple smaller drops, preventing flash and seat erosion common in dosing pump service.
Is it suitable for food / beverage dosing?
Yes. The PTFE / PFA lining and optional CIP connection make it well suited for syrup, flavour, acid and CIP-chemical dosing in food plants.
Applications & Use Cases
Water Treatment Dosing
Coagulant (PAC, PAM), acid (H2SO4) and alkali (NaOH) injection in clarification and softening plants.
Mining & Mineral Processing
Cyanide, flotation reagent and flocculant dosing on concentrator and tailings lines.
Chemical & Petrochemical
Catalyst, inhibitor and antifoam injection in reactor and product lines.
Food & Beverage
Syrup, CO2, acid and CIP-chemical dosing in bottling and dairy plants.
